When it comes to building a sturdy, energy-efficient foundation for your home, insulated concrete form (ICF) technology is rapidly growing in popularity. By providing superior insulation, an ICF foundation can significantly reduce heating and cooling costs.

Building an ICF foundation can also be easier and less labor-intensive than traditional construction due to the lightweight materials involved. However, the initial cost can sometimes be higher than traditional construction methods, so how much does an ICF foundation cost?

What is an ICF Foundation?

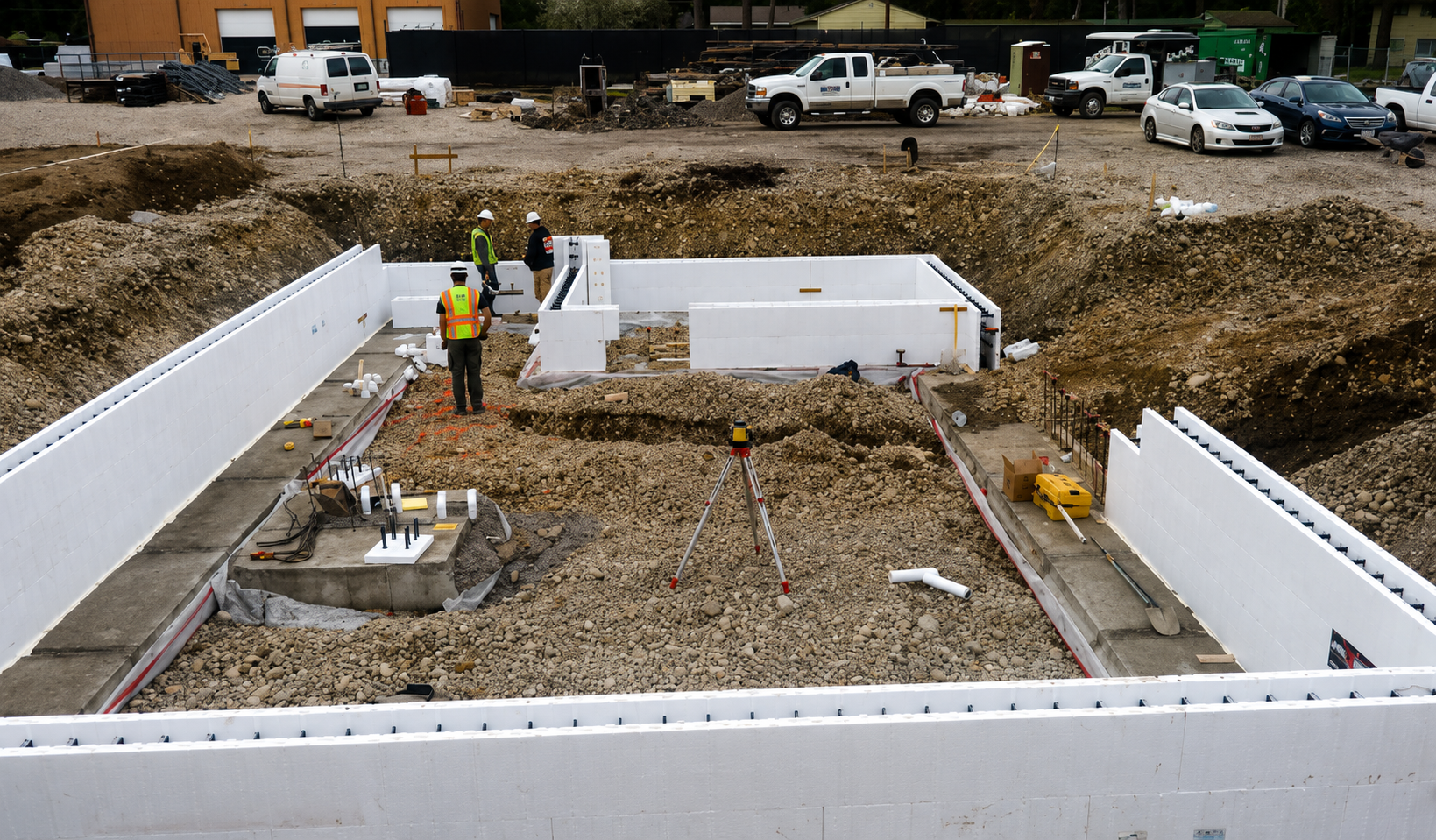

Insulated concrete forms (ICF) consist of two panels of insulating foam held together with polypropylene ties. The panels form a block shape with a hollow space in the middle. The blocks can be stacked on site with steel reinforcing bars placed in the gap. Finally, concrete is poured into the gap and allowed to set. The resulting steel-reinforced concrete structure is incredibly strong and durable.

ICF foundations require less skilled labor than other building methods and reduce the opportunities for human error. ICF blocks are also lightweight and easy to move quickly around a job site. Once in place, the concrete naturally fills the entire gap and both layers of insulation are already in place.

ICF below grade foundation walls require a compatible waterproofing material, which is easily applied directly to the foam insulation.

Benefits of ICF Foundations

ICF blocks provide a host of benefits including strength, energy efficiency, and durability. The superiority of ICF as a building material is part of the reason for its increasing popularity. Some of the most popular benefits include:

High Strength

ICF blocks provide exceptional strength and durability due to their steel-reinforced concrete. ICF construction allows loads to be transferred from throughout the building into the building’s foundation, to keep the building and occupants safe. The incredible load-bearing capacity of ICF construction allows the buildings to even qualify as storm shelters.

Energy Efficiency

An ICF foundation, with double layers of insulation, exceeds energy code requirements for below grade walls. The thick concrete slabs in an ICF building provide a large amount of thermal mass. The concrete heats and cools slowly, to reduce swings in temperature.

ICF blocks also provide both an inner and outer layer of continuous insulation. The thick insulation reduces the rate of heat transfer into and out of the building. These two factors combined, result in an energy-efficient building with reduced cooling or heating costs compared to a traditionally constructed building.

Enhanced Durability

Concrete is a naturally mildew and mold resistant material. Insects like termites are not attracted to concrete. With proper attention to water shedding away from the foundation, ICF blocks provide incredible durability with relatively low maintenance.

Is an ICF Foundation More Expensive?

An ICF foundation cost typically ranges from $20,700 to $38,000, or $18.25 - $31.75 per square foot, with a national average of approximately $29,450​​. This cost not only includes the ICF forms but also factors in excavation, cement/concrete, rebar, miscellaneous supplies, and labor.

In most cases, a drainage system such as drain tile or a French drain is also installed to provide drainage away from the foundation​ which helps to keep the foundation in great shape​.

The price of an ICF foundation can vary widely based on several factors. These can include design fees, permitting, excavation costs, site conditions, the amount of infill and backfill required, wall height, and the complexity of the foundation design​​.

Material costs also factor into the total cost of an ICF foundation. For instance, costs for pea stone or gravel, mixed concrete, vapor barriers, and ICF forms all contribute to the overall price. Compared to a traditionally constructed home, an ICF home will often cost about 3% to 5% more.

In a cost comparison, a typical concrete formed and poured foundation wall will require additional interior strapping, insulation , and vapor barrier to meet the same characteristics of an ICF wall. Also note that ICF foundation walls, in most areas, may be designed with a 6" reinforced concrete core size versus a typical 8" poured wall, providing additional cost savings.

Despite the slightly higher initial cost, an ICF foundation can be a wise investment in the long run. An ICF foundation has an R-value of around 22, and can reduce energy needs to heat and cool the basement by up to 45%.

Choose Fox Blocks for Your ICF Foundation

When it comes to ICF foundations, Fox Blocks is one of the most reputable names in the industry. While the cost of an ICF foundation can be slightly higher than that of a traditional foundation, the energy savings and durability they offer make them a cost-effective choice for many homeowners.

If you're planning your dream home and are considering an ICF foundation, be sure to factor in both the initial costs and the long-term savings.

Remember to consult with a reputable builder or contractor to ensure you're getting the most out of your investment. For more detailed information and cost estimates for your specific project, please reach out to the professionals at Fox Blocks today!
